Question 1

What is an external circlip and what applications use them?

Accepted Answer

An external circlip is a spring steel retaining ring that fits into a groove machined on a shaft. It prevents bearings, gears, pulleys, and other components from sliding along the shaft. External circlips are widely used in automotive transmissions, pumps, electric motors, gearboxes, and general machinery because they secure components reliably with minimal assembly effort.

Question 2

How do I choose the correct external circlip size for my shaft?

Accepted Answer

The circlip size is determined by your shaft diameter. Measure your shaft diameter first (e.g., 30mm), then look up the DIN 471 standard for that size. The groove must be machined to the exact DIN 471 specifications. Ring thickness, groove width, and groove depth are all critical. We stock all standard sizes from 5mm to 150mm and can help verify the right match for your application.

Question 3

What's the difference between carbon steel and stainless external circlips?

Accepted Answer

Carbon steel (high-strength spring steel) is standard for most applications - it's economical and works well in dry, climate-controlled environments. Stainless steel costs 2-3x more but is essential for: marine/saltwater equipment, food industry, pharmaceutical machinery, and outdoor exposures. Choose stainless if your machinery contacts water, chemicals, or corrosive environments.

Question 4

What tools do I need to install external circlips?

Accepted Answer

You need external circlip pliers (also called snap ring pliers). These specialized pliers have two prongs that fit into the holes on the circlip. The pliers compress the ring slightly so it can slide onto the shaft, then release to let it snap into the groove. Proper pliers cost $10-30 and are essential for damage-free installation. We can recommend good quality tool suppliers if needed.

Question 5

How are external circlips different from internal circlips?

Accepted Answer

The main difference is location: external circlips go ON a shaft (outer surface), while internal circlips go IN a bore (inner surface). External circlips expand outward when removed, internal ones expand inward. Both prevent axial movement. The manufacturing processes and tolerances differ, so you can't substitute one for the other. Choose based on whether you're retaining on a shaft or inside a housing.

Question 6

Do you offer quality certifications and testing?

Accepted Answer

Yes. All external circlips meet DIN 471 / ISO 3075 standards. We perform tensile strength testing, hardness verification, and dimensional inspections on every batch. Certifications include material composition, mechanical properties, and dimensional reports. Test certificates are provided with bulk orders (1000+ units) and can be requested for standard orders.

Question 7

Can external circlips be reused, and what's the shelf life?

Accepted Answer

External circlips can be reused if removed carefully and they retain their spring shape. Don't reuse if they're bent, permanently deformed, or show fatigue cracks. Properly stored circlips (dry, room temperature) have no shelf life - they can be stored indefinitely. Carbon steel develops surface rust over time, but this doesn't affect functionality unless rust is severe. Stainless steel remains protected.

Parameter	Details
Standard	DIN 471 / ISO 3075
Product Type	Retaining Ring / Circlip
Size Range	10 mm – 100 mm (custom available)
Material Options	Carbon Steel · Stainless Steel · Alloy Steel
Coatings	Phosphate · Zinc Plated · Electroless Nickel
Quality Assurance	ISO 9001:2015 · Batch Test Reports · COC Available
Packaging	Polybag · Box · Bulk — as per requirement

External Circlip

External Circlip

Technical Specifications

FAQs

Related Products

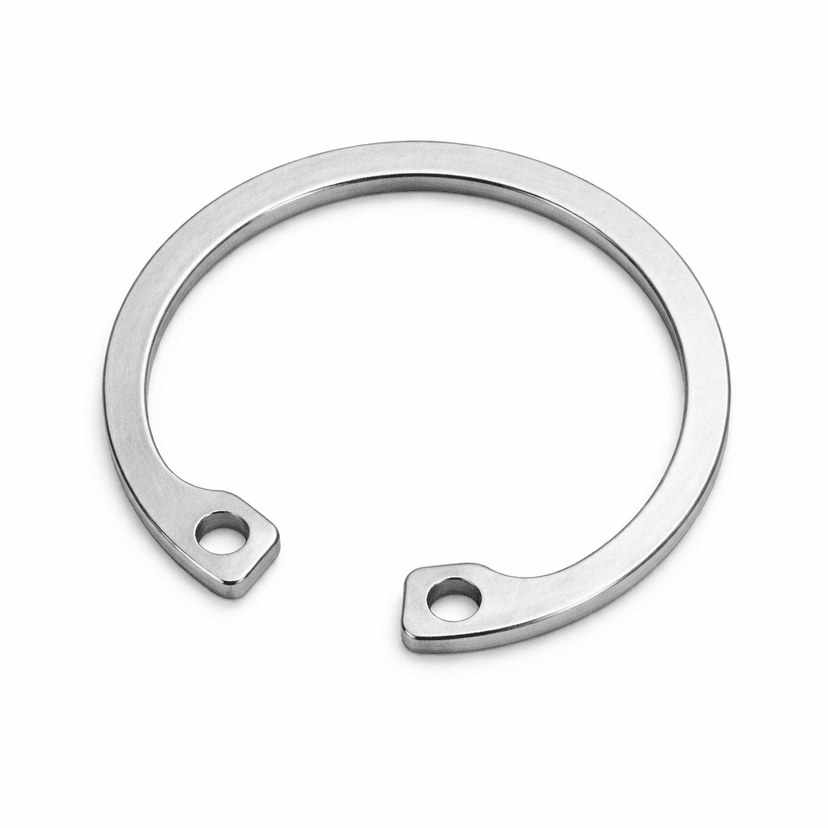

Internal Circlip
