Question 1

What are spring dowel pins and why are they better than solid pins?

Accepted Answer

Spring dowel pins (also called slotted spring pins or roll pins) are hollow pins with a split lengthwise. When pressed into a drilled hole, they compress slightly, then expand to grip the hole walls with strong spring force. Unlike solid pins that rely on tight tolerance holes, spring pins work in standard drilled holes with looser tolerances. They're vibration-resistant, cost-effective, and ideal for assembly, alignment, and light load transmission in machinery and automotive.

Question 2

Whathole diameter should I drill for a specific dowel pin size?

Accepted Answer

Spring dowel pins typically install into holes that are 0.1-0.3mm smaller than the pin's nominal diameter (the tight fit causes compression). For example, a 6mm spring dowel pin goes in a 5.8-5.9mm hole. DIN 1481 standards specify exact hole sizes for each pin size. We provide installation tables with every order. Drilling too large reduces grip; drilling too small makes installation difficult and may split the pin.

Question 3

Should I use a press or hammer to install dowel pins?

Accepted Answer

Use a mechanical press whenever possible - it applies controlled, even force and prevents pin damage. A hammer works for emergency repairs but risks bending the pin. For volume assembly, hydraulic presses (5-20 ton capacity depending on pin size) are standard. Never force a pin by hand - proper installation should require moderate press force. Installing without proper force compromises retention and durability.

Question 4

What materials are spring dowel pins made from?

Accepted Answer

We offer: high-carbon spring steel (most common - strong, economical), stainless steel (corrosion-resistant for wet/food industry), and alloy steel (extreme strength for heavy loads). Material choice depends on: load requirements, operating environment (dry vs wet), temperature range, and budget. Carbon steel suits 90% of applications. Stainless costs 50% more but essential for marine, pharmaceutical, or outdoor equipment.

Question 5

Can dowel pins handle vibration and shock loads?

Accepted Answer

Yes - that's a major advantage. Spring dowel pins absorb shock and vibration better than solid pins because they flex slightly rather than transmitting full impact. This makes them ideal for: vehicles/machinery with vibration, high-speed spindles, and equipment subject to thermal cycling. The spring action keeps the pin tight even as assemblies settle over time, preventing looseness that affects precision alignments.

Question 6

Are spring dowel pins reusable?

Accepted Answer

Single-use is standard for precision applications. Once installed, the pin loses some tension and may not grip equally if reinstalled. However, stainless steel versions can sometimes be reused if removed carefully and no damage occurred. For critical assemblies (like engine blocks), always use NEW pins. For maintenance/repair work, reuse is acceptable if the pin still grips firmly. Inspect before reusing - discard if bent or cracked.

Question 7

What are your lead times and minimum order quantities?

Accepted Answer

We stock all standard sizes (1mm to 20mm diameter) in carbon spring steel. Standard sizes ship in 3-5 business days for orders up to 10,000 units. Stainless steel and custom sizes take 7-14 days. Minimum order: 1000 pieces per size for standard, 100 pieces for stainless. Bulk orders (1000+) get volume discounts (10-25% off). Custom diameters/lengths available with 4-6 week lead time.

Parameter	Details
Standard	DIN 1481 / ISO 5988
Product Type	Precision Fastening Pin
Range	Diameter (2–20) mm x Length (10-200) mm
Material Options	Spring Steel · Stainless Steel · Alloy Steel
Coatings	Phosphate · Zinc Plated · Plain
Quality Assurance	ISO 9001:2015 · Dimensional Reports · COC Available
Packaging	Polybag · Box · Bulk — as per requirement

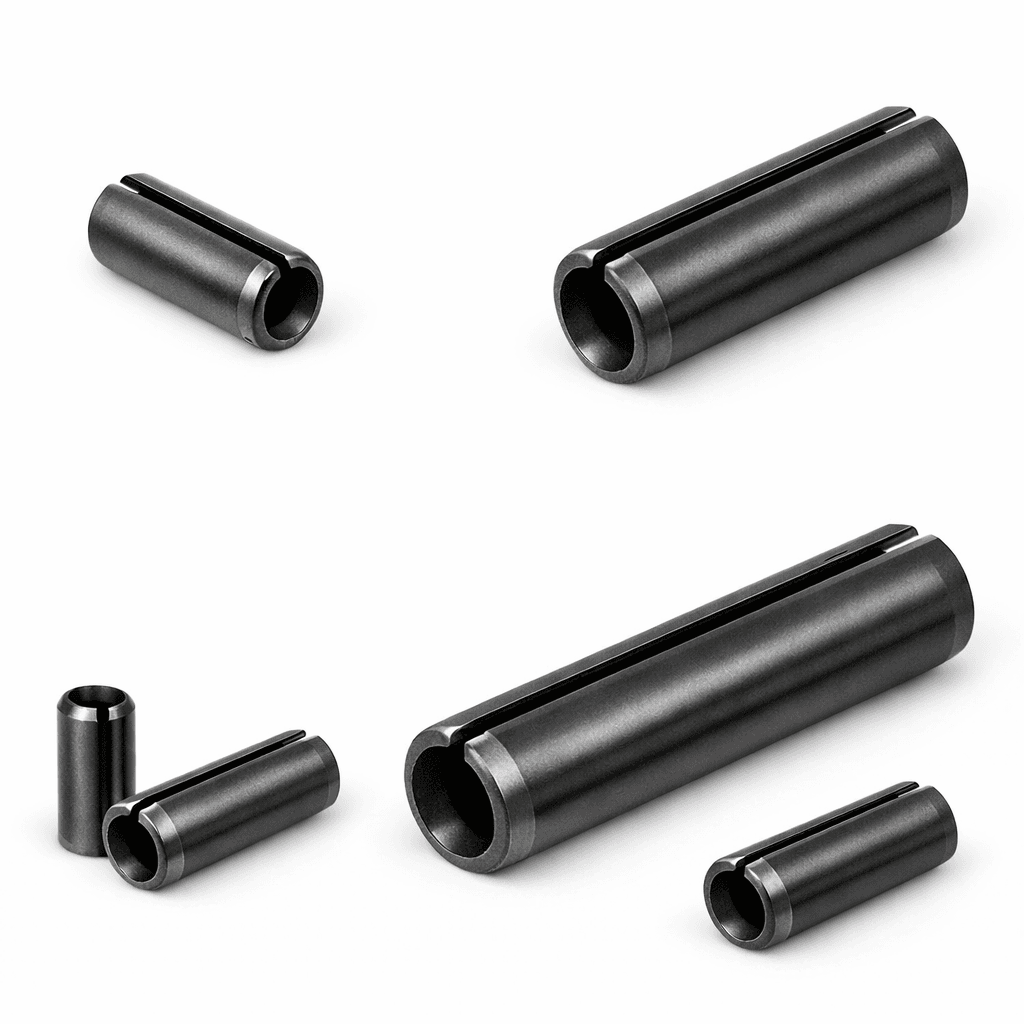

Spring Dowel Pins

Spring Dowel Pins

Technical Specifications

FAQs

Related Products

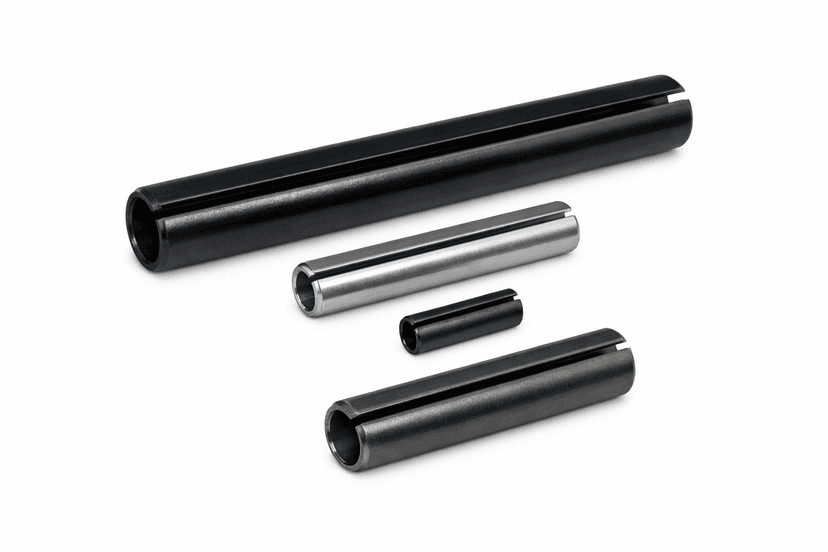

Spring Dowel Sleeves
