Question 1

What is an internal circlip and why do I need one?

Accepted Answer

An internal circlip is a metal retaining ring that fits inside a bore (hole groove) to hold components like bearings, gears, or bushings in a fixed position. It works by gripping the groove walls and prevents parts from moving axially (sliding along the shaft direction). Industries use them because they're space-saving, cost-effective, and provide reliable retention without additional fasteners.

Question 2

How do I know what size internal circlip I need?

Accepted Answer

The size is determined by your bore diameter. For example, if your bore is 20mm, you'll need a DIN 472 circlip designed for that size. Check the shaft or bore diameter first, then refer to standard DIN 472 dimension tables. We can help you confirm the exact size - just provide your bore diameter and groove specifications. Most standard sizes from 8mm to 100mm are available in stock.

Question 3

What's the difference between carbon steel and stainless steel circlips?

Accepted Answer

Carbon steel circlips are stronger and more economical - ideal for dry, indoor applications in machinery and automotive. Stainless steel circlips cost more but resist corrosion, making them perfect for wet environments, food processing, marine equipment, and outdoor use. Choose based on your operating environment - if moisture or chemicals are involved, stainless is worth the investment.

Question 4

How should I install an internal circlip properly?

Accepted Answer

Use internal circlip pliers (special spreading pliers designed for internal rings). Grip the pliers into the two holes on the circlip to expand it carefully, slide it into the bore groove, then release the pliers to let it seat fully. The circlip should sit evenly in the groove with no gaps. Improper installation can cause the circlip to slip or fail. We recommend marking the groove with a marker to ensure proper seating.

Question 5

Do your circlips come with quality certifications?

Accepted Answer

Yes. All our internal circlips are manufactured to DIN 472 / ISO 3075 standards and come with ISO certificates. Each batch is tested for tensile strength, hardness, and dimensional accuracy. We maintain strict quality control in our manufacturing process to ensure every circlip meets specification before shipping. Certifications are available upon request.

Question 6

Can I order circlips in bulk, and do you offer custom sizes?

Accepted Answer

Absolutely. We specialize in bulk orders for manufacturing companies and distributors. Standard sizes (8mm to 100mm) ship quickly. For custom or non-standard sizes, lead times are typically 4-6 weeks depending on your specifications. Bulk orders (500+ units) qualify for special pricing. Contact our sales team with your requirements for a customized quote.

Question 7

How long will an internal circlip last in my machine?

Accepted Answer

With proper installation, an internal circlip can last the lifetime of your machine. They don't wear out like flexible components. However, they can fail if: the groove is machined incorrectly, the assembly vibrates excessively without proper damping, or the load exceeds the circlip's rated retention force. Regular machinery maintenance and avoiding excessive shock loads will ensure reliability.

Parameter	Details
Standard	DIN 472 / ISO 3075
Product Type	Retaining Ring / Circlip
Size Range	10 mm – 100 mm (custom available)
Material Options	Carbon Steel · Stainless Steel · Alloy Steel
Coatings	Phosphate · Zinc Plated · Electroless Nickel
Quality Assurance	ISO 9001:2015 · Batch Test Reports · COC Available
Packaging	Polybag · Box · Bulk — as per requirement

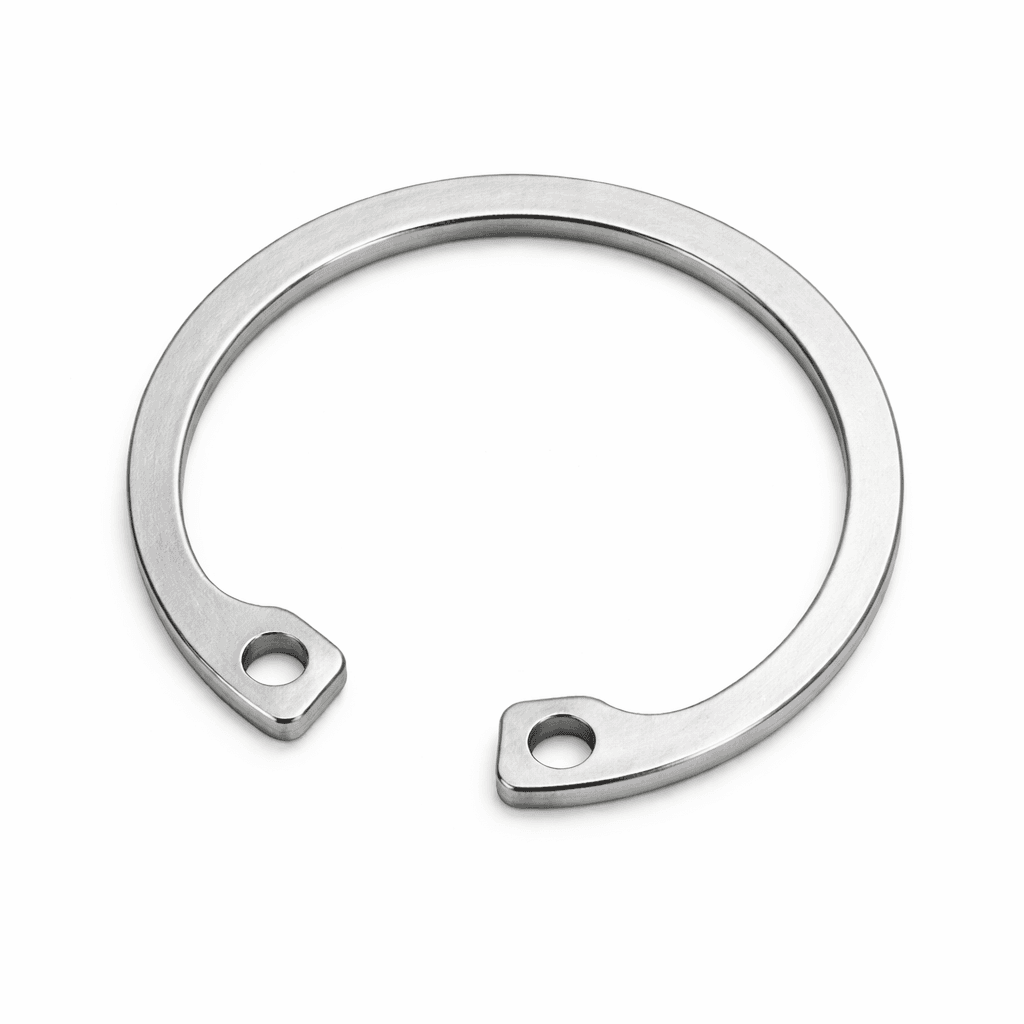

Internal Circlip

Internal Circlip

Technical Specifications

FAQs

Related Products

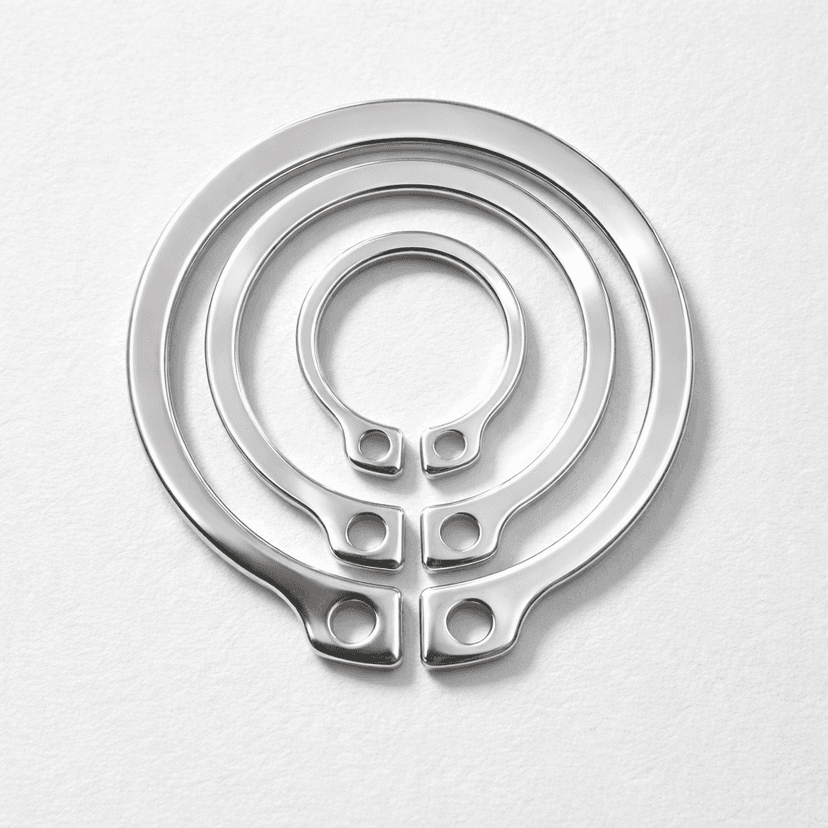

External Circlip

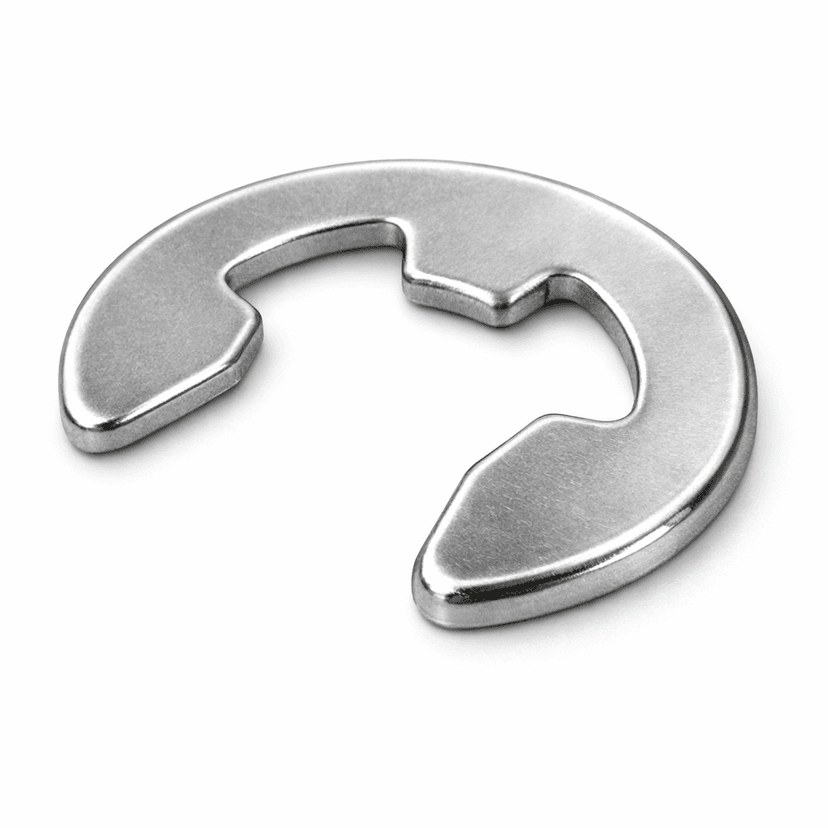

E-Clip
