Question 1

What are spring dowel sleeves and when would I use them?

Accepted Answer

Spring dowel sleeves (also called expansion sleeves or split sleeves) are hollow bushings with a lengthwise split. When pressed into a drilled hole, they compress slightly, then expand radially to grip the hole walls with spring tension. Use them for: alignment bushings in machine fixtures, hinge pins in heavy equipment, pivot points that need vibration-dampening, and joints requiring reusability (they can be removed and reinstalled multiple times without losing tension). They're ideal where a solid pin won't grip tight enough or parts need adjustment capability.

Question 2

What's the difference between dowel sleeves and dowel pins?

Accepted Answer

Dowel pins are solid and rely on tight hole tolerances for interference fit. Dowel sleeves are hollow/split and grip holes through spring expansion - they work in looser-tolerance standard holes. Dowel sleeves are REUSABLE (can be removed/reinstalled 10+ times); pins are single-use. Sleeves dampen vibration better due to flexing. Pins are cheaper and easier to install, suitable for permanent assemblies. Choose sleeves for: adjustable fixtures, maintenance-prone joints, or repeated assembly/disassembly cycles.

Question 3

How do I determine the correct hole size for a dowel sleeve?

Accepted Answer

Dowel sleeves typically fit holes 0.2-0.5mm smaller than the sleeve nominal diameter. For example, a 6mm sleeve goes in a 5.6-5.8mm hole. DIN 7346 standards specify exact hole sizes for each sleeve size. We provide installation tables with every order. The tighter the hole, the harder the installation (more spring force). The looser the hole, the weaker the grip. Proper sizing is critical for reliable retention with proper installation force.

Question 4

Can dowel sleeves be removed and reused?

Accepted Answer

Yes - this is one of their main advantages over solid pins. Remove them carefully (use a puller or carefully tap out). As long as the sleeve isn't cracked or permanently dented, it retains spring tension and grips just as well when reinstalled. We've seen customers successfully reuse sleeves 20+ times. However, if you detect permanent damage, dents that don't spring back, or cracked ends, replace them immediately - damaged sleeves lose grip force and become unreliable.

Question 5

What materials are dowel sleeves made from?

Accepted Answer

Primarily spring steel (DIN 7346) - strong, economical, vibration-resistant. Stainless steel available for wet/corrosive environments (costs 50-80% more). Coatings: phosphate (standard), zinc-plated (light corrosion resistance), electroless nickel (severe corrosion). Spring steel development surface rust over time but this doesn't affect function. Choose stainless for: food machinery, marine/saltwater equipment, pharmaceutical use, or any wet environment.

Question 6

How should I install a dowel sleeve for best results?

Accepted Answer

1) Drill the hole to exact DIN diameter. 2) Use a mechanical press at moderate force (never hammer). 3) Sleeve should compress, slide into hole, then expand to fill it. 4) Proper installation feels smooth - no binding or harsh resistance. 5) Press until sleeve is fully seated. Over-pressing risks damaging the sleeve. Under-pressing leaves it loose. For volume production, pneumatic presses (5-20 bar) are ideal. For one-off assembly, hand press or small hydraulic jack works fine.

Question 7

What are your lead times and pricing for dowel sleeves?

Accepted Answer

Standard DIN 7346 sleeves in spring steel: 5-7 day lead time. Stainless steel or custom sizes: 10-14 days. Minimum order: 1000 pieces per size for standard, 100 for stainless. Pricing: typically $0.05-0.25 per sleeve (spring steel), $0.10-0.40 (stainless) depending on size. Bulk discounts: 1000+ pieces = 10% off, 5000+ = 20% off, 10000+ = 30% off. Request a quote with: outer diameter, length, material, and quantity.

Parameter	Details
Standard	DIN 7346 / IS 5988
Product Type	Precision Fastening Pin
Range	Diameter (2–20) mm x Length (10-200) mm
Material Options	Spring Steel · Stainless Steel · Alloy Steel
Coatings	Phosphate · Zinc Plated · Plain
Quality Assurance	ISO 9001:2015 · Dimensional Reports · COC Available
Packaging	Polybag · Box · Bulk — as per requirement

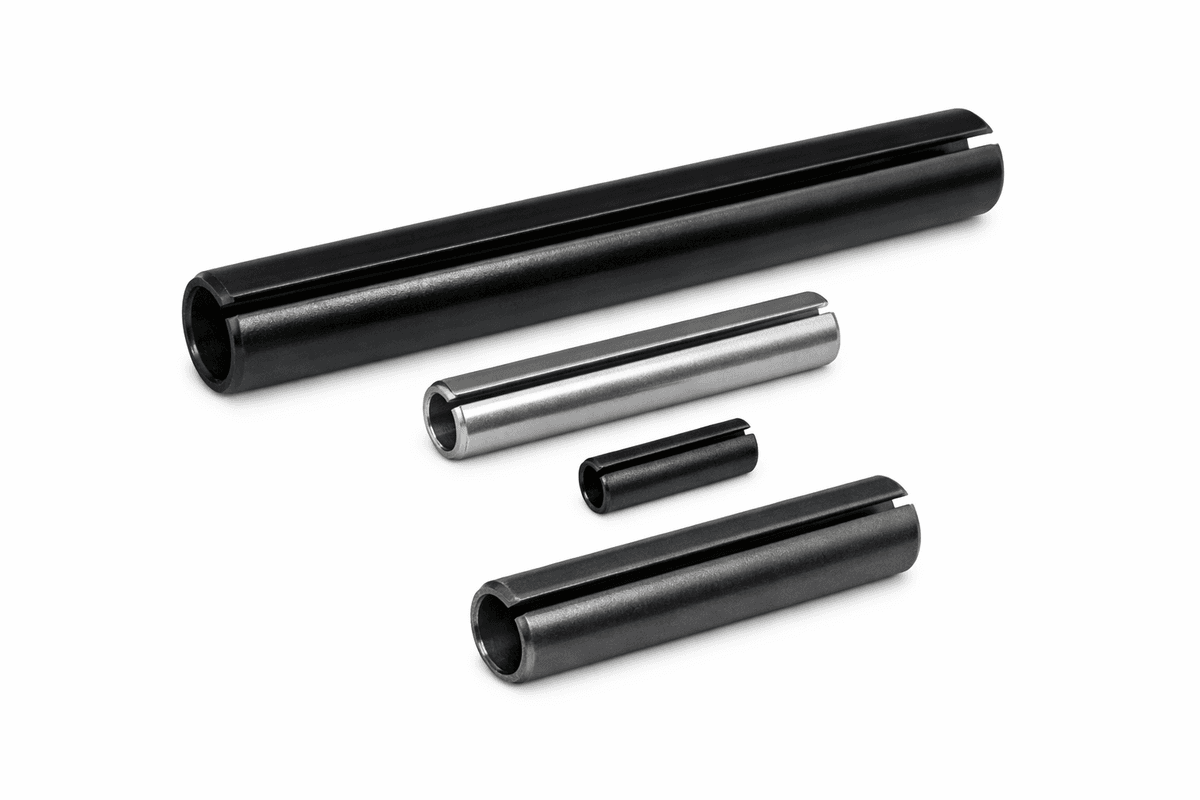

Spring Dowel Sleeves

Spring Dowel Sleeves
